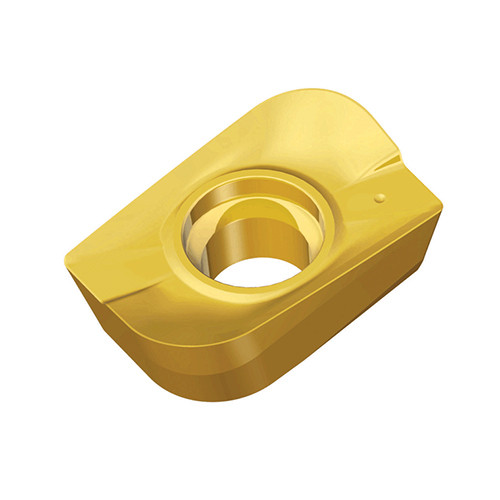

Taegutec APCT 120430R-ML TT3540

Description

Positive ground AP 12 inserts with sharp helical cutting edges for machining of exotic materials & super alloys for 90° shoulders

Weight	0.0052 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT3540 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.08 mm/tooth Cutting Edge Length (L): 13.3 mm Cutting Edge Material: Carbide Corner Radius (RE): 3 mm Minimum Feed per Tooth (fz(min)): 0.04 mm/tooth Depth of Cut Maximum (APMX): 10 mm Number of Cutting Edges: 2 Insert Width (W1): 8.3 mm Measurement Type: Metric Insert Thickness (S): 4.81 mm Body Material: Carbide Coating: TiAlN Unit: M
