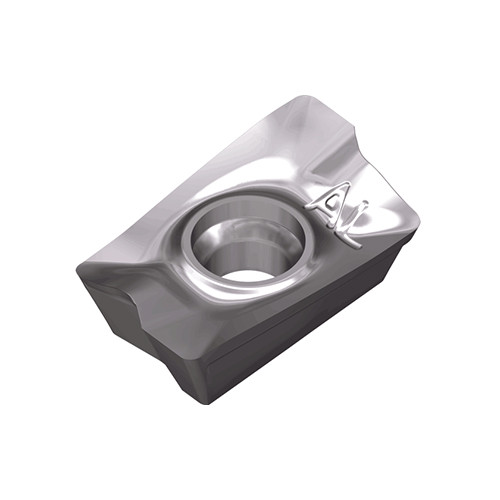

Taegutec APCT 1705 PER-AL K10

Description

Positive ground & polished AP 17 inserts with sharp helical cutting edges for aluminum & non-ferrous materials machining in 90° shoulders

Weight	0.0117 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Maximum Feed per Tooth (fz(max)): 0.5 mm/tooth Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 13 mm Number of Cutting Edges: 2 Insert Thickness (S): 5.62 mm Measurement Type: Metric Coating: Uncoated Body Material: Carbide Grade: K10 Unit: M
