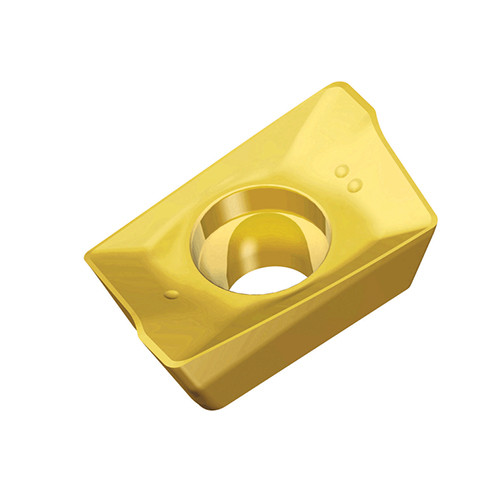

Taegutec APKT 09T3 PER-EM TT3540

Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT3540
Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.1 mm/tooth
Cutting Edge Length (L): 10.55 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.4 mm
Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth
Depth of Cut Maximum (APMX): 7.5 mm
Number of Cutting Edges: 2
Insert Width (W1): 6.2 mm
Measurement Type: Metric
Insert Thickness (S): 3.8 mm
Body Material: Carbide
Coating: TiAlN
Unit: M
