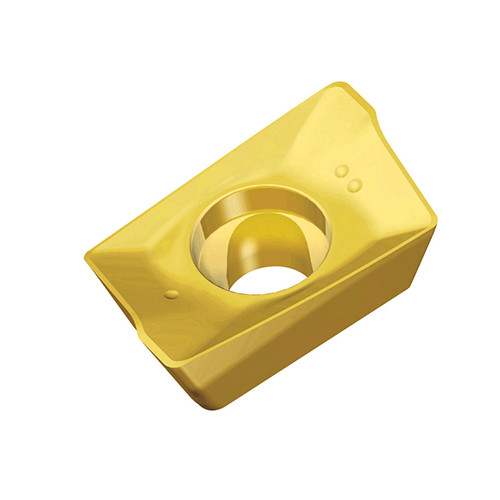

Taegutec APKT 09T3 PER-M TT6080

Description

Positive inserts with ground wiper for better surface finish and two high positive helical cutting edges of APKT 09 in 90° shoulders

Weight	0.0030 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.1 mm/tooth Cutting Edge Length (L): 10.35 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.44 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 7.5 mm Number of Cutting Edges: 2 Insert Width (W1): 6.2 mm Measurement Type: Metric Insert Thickness (S): 3.8 mm Body Material: Carbide Coating: AlTiN+TiN Unit: M
