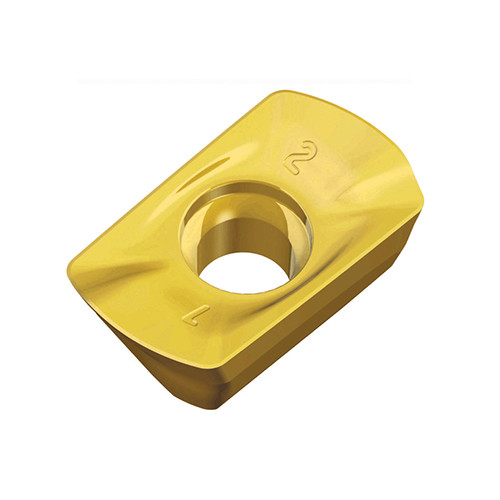

High feed inserts of APKT 09 with max. depth of cut 1.0 mm
Additional information
Weight
0.0031 kg
barcode
Additional Information
Applicable Material:, Steel, Hard Materials, Grade: TT2510
Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.8 mm/tooth
Cutting Edge Length (L): 10.7 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 5.25 mm
Minimum Feed per Tooth (fz(min)): 0.3 mm/tooth
Depth of Cut Maximum (APMX): 1 mm
Number of Cutting Edges: 2
Insert Width (W1): 6.2 mm
Measurement Type: Metric
Insert Thickness (S): 3.9 mm
Body Material: Carbide
Coating: AlTiN
Unit: M
