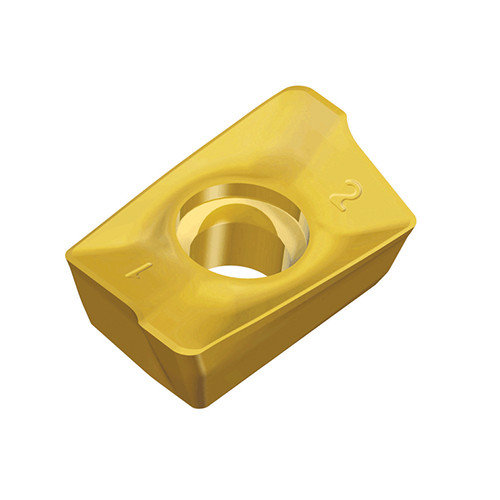

Taegutec APKT 1204 PER-EM TT9030

Product Code: 5609705

$25.05$22.77 Ex. GST

Product Code: 5609705 SKU 5609705 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

High positive inserts with two helical cutting edges for 90° shoulders & general machining

Weight	0.0058 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9030 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.14 mm/tooth Cutting Edge Length (L): 14.6 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Depth of Cut Maximum (APMX): 10 mm Number of Cutting Edges: 2 Insert Width (W1): 1.6 mm Measurement Type: Metric Insert Thickness (S): 4.76 mm Body Material: Carbide Coating: TiAlN Unit: M
