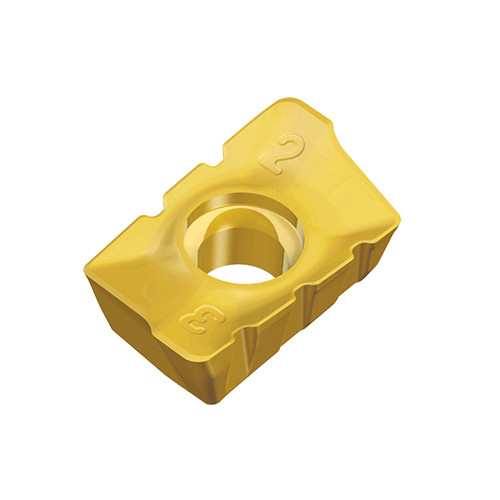

Taegutec APKT 1204 PER-SM TT8080

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8080
Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.14 mm/tooth
Cutting Edge Length (L): 14.6 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.8 mm
Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth
Depth of Cut Maximum (APMX): 10 mm
Number of Cutting Edges: 2
Insert Width (W1): 8.3 mm
Measurement Type: Metric
Insert Thickness (S): 4.76 mm
Body Material: Carbide
Coating: TiAlN+TiN
Unit: M
