Taegutec APKT 120416R-EM TT6080

Product Code: 5613585

$25.05$22.77 Ex. GST

Product Code: 5613585 SKU 5613585 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

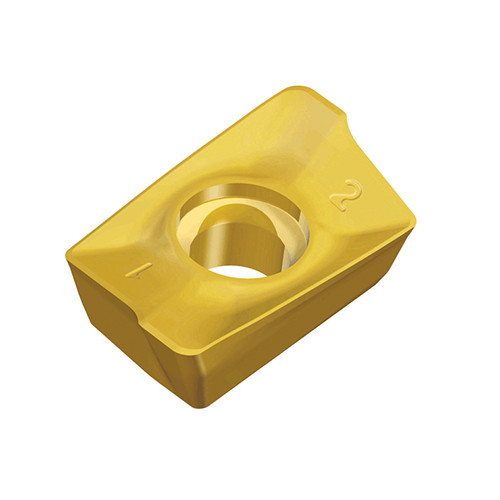

Taegutec APKT 120416R-EM TT6080

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Various corner radii inserts of APKT 12 with two helical cutting edges for general machining

Additional information

Weight	0.0070 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.14 mm/tooth Cutting Edge Length (L): 14.6 mm Cutting Edge Material: Carbide Corner Radius (RE): 1.6 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Depth of Cut Maximum (APMX): 10 mm Number of Cutting Edges: 2 Insert Width (W1): 8.3 mm Measurement Type: Metric Insert Thickness (S): 4.76 mm Body Material: Carbide Coating: AlTiN+TiN Unit: M

Brand

Taegutec
