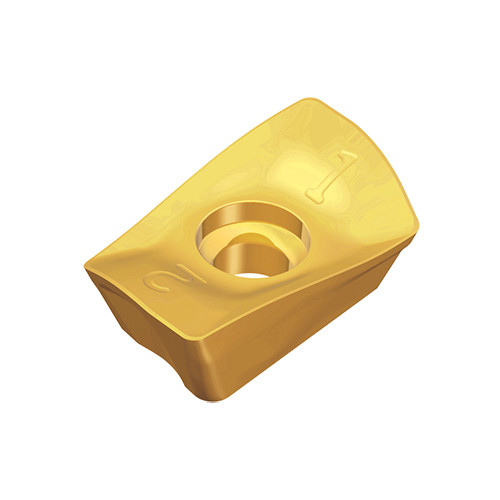

Taegutec APKT 1705 PER-EM TT7080

Product Code: 5611144

$30.09$27.35 Ex. GST

Product Code: 5611144 SKU 5611144 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

High positive inserts with two helical cutting edges for 90° shoulders & general machining

Weight	0.0085 kg
barcode
Additional Information	Applicable Material:, Steel, Cast Iron, Grade: TT7080 Application:, Chamfer & Serration, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.5 mm/tooth Cutting Edge Length (L): 18.5 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 13 mm Number of Cutting Edges: 2 Insert Width (W1): 10.7 mm Measurement Type: Metric Insert Thickness (S): 5.56 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
