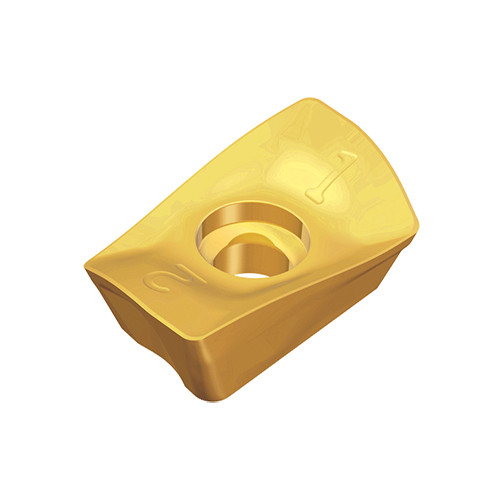

Taegutec APKT 1705 PER-EM TT7515

Applicable Material:, Cast Iron, Hard Materials, Grade: TT7515
Application:, Chamfer & Serration, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.5 mm/tooth
Cutting Edge Length (L): 18.5 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.8 mm
Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth
Depth of Cut Maximum (APMX): 13 mm
Number of Cutting Edges: 2
Insert Width (W1): 10.7 mm
Measurement Type: Metric
Insert Thickness (S): 5.56 mm
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
