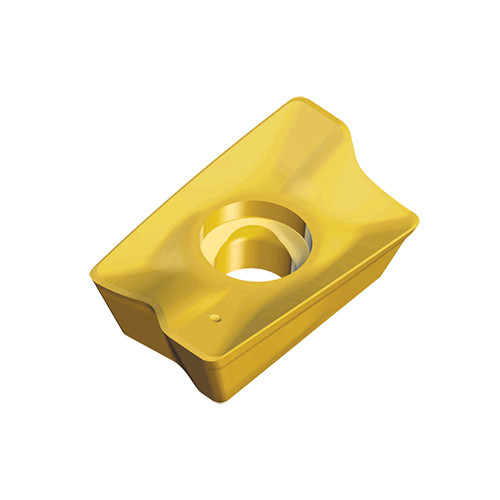

Taegutec APKT 1705 PER-EML TT7080

Product Code: 5612042

$30.09$27.35 Ex. GST

Product Code: 5612042 SKU 5612042 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

High positive inserts with two helical cutting edges for 90° shoulders & general machining

Weight	0.0084 kg
barcode
Additional Information	Applicable Material:, Steel, Cast Iron, Maximum Feed per Tooth (fz(max)): 0.14 mm/tooth Application:, Chamfer & Serration, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Depth of Cut Maximum (APMX): 13 mm Number of Cutting Edges: 2 Insert Thickness (S): 5.56 mm Measurement Type: Metric Coating: TiAlN+TiN Body Material: Carbide Grade: TT7080 Unit: M
