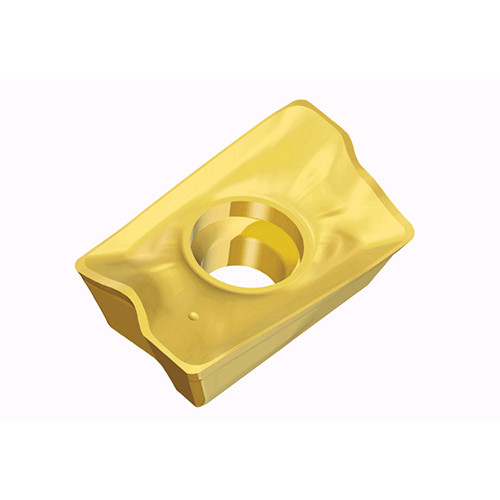

Taegutec APKT 1705 PER-M TT8020

Description

Positive inserts with ground wiper flat for better surface finish and two high positive helical cutting edges of APKT 17 in 90° shoulders

Weight	0.0095 kg
barcode

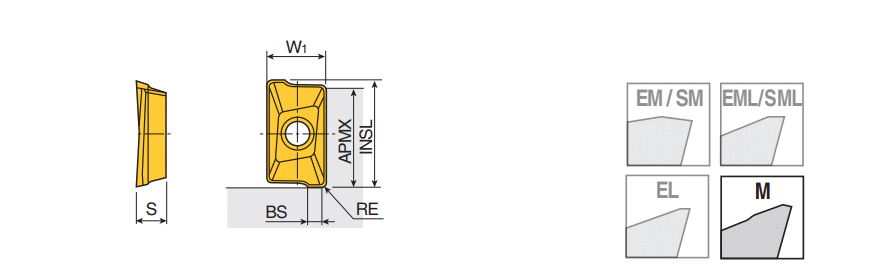

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8020 Application:, Chamfer & Serration, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.18 mm/tooth Cutting Edge Length (L): 18.5 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.09 mm/tooth Depth of Cut Maximum (APMX): 13 mm Number of Cutting Edges: 2 Insert Width (W1): 10.7 mm Measurement Type: Metric Insert Thickness (S): 5.56 mm Body Material: Carbide Coating: TiCN Unit: M
