Taegutec APKT 170516R-M TT8020

Product Code: 5609839

$33.10$30.09 Ex. GST

Product Code: 5609839 SKU 5609839 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

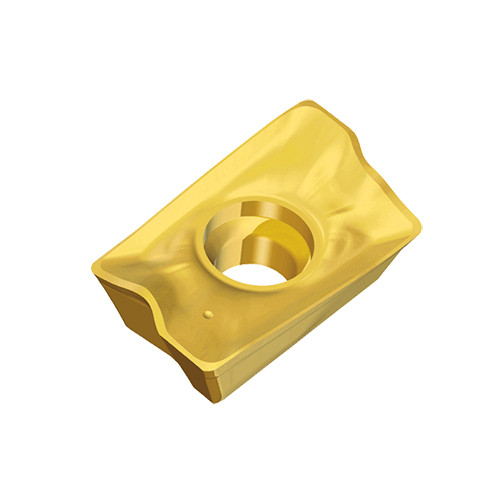

Various corner radii inserts of APKT 17 with two helical cutting edges for general machining in 90° shoulders

Weight	0.0094 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Maximum Feed per Tooth (fz(max)): 0.3 mm/tooth Application:, Chamfer & Serration, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Cutting Edge Material: Carbide Corner Radius (RE): 1.6 mm Minimum Feed per Tooth (fz(min)): 0.15 mm/tooth Depth of Cut Maximum (APMX): 13 mm Number of Cutting Edges: 2 Insert Thickness (S): 5.56 mm Measurement Type: Metric Coating: TiCN Body Material: Carbide Grade: TT8020 Unit: M
