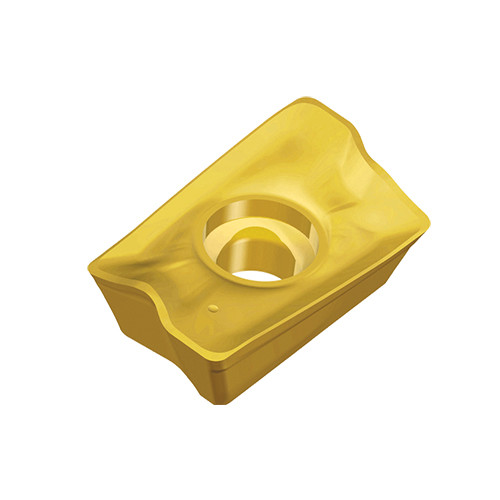

Taegutec APKT 170540R-EM TT9080

Description

Various corner radii inserts of APKT 17 with two helical cutting edges for general machining in 90° shoulders

Weight	0.0085 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Chamfer & Serration, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Cutting Edge Length (L): 17.03 mm Cutting Edge Material: Carbide Corner Radius (RE): 4 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 13 mm Number of Cutting Edges: 2 Insert Width (W1): 10.7 mm Measurement Type: Metric Insert Thickness (S): 5.56 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
