Taegutec AVKT 1004 PER-M TT7080

Description

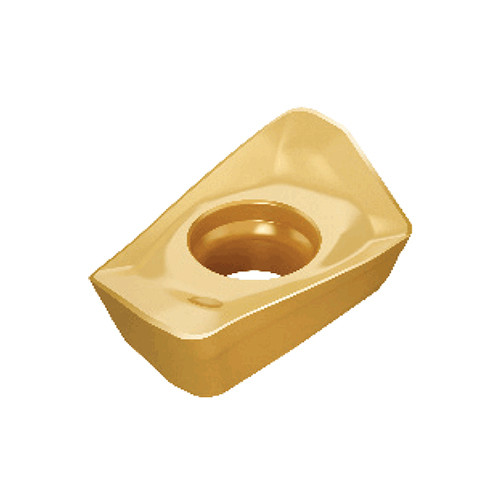

High productivity single-sided, two-corner inserts with V-shape bottom contact for shoulder milling

Weight	0.0022 kg
barcode

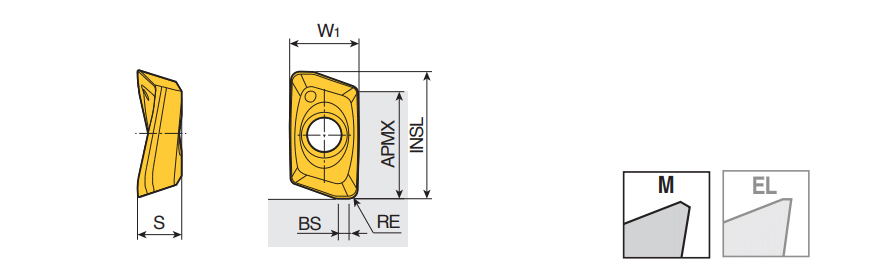

Additional Information	Applicable Material:, Steel, Cast Iron, Maximum Feed per Tooth (fz(max)): 0.12 mm/tooth Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.06 mm/tooth Depth of Cut Maximum (APMX): 8 mm Number of Cutting Edges: 2 Insert Thickness (S): 4.3 mm Measurement Type: Metric Coating: TiAlN+TiN Body Material: Carbide Grade: TT7080 Unit: M
