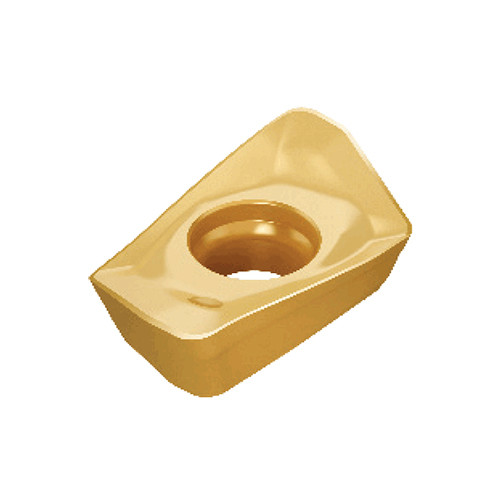

Taegutec AVKT 1004 PER-M TT9080

Product Code: 6218005

$24.60$22.36 Ex. GST

Product Code: 6218005 SKU 6218005 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

High productivity single-sided, two-corner inserts with V-shape bottom contact for shoulder milling

Weight	0.0039 kg
barcode

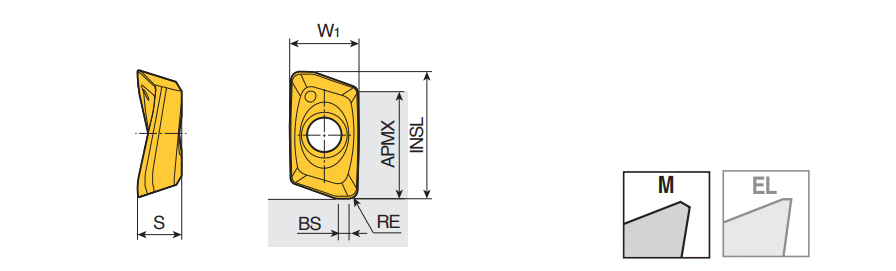

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Maximum Feed per Tooth (fz(max)): 0.12 mm/tooth Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.06 mm/tooth Depth of Cut Maximum (APMX): 8 mm Number of Cutting Edges: 2 Insert Thickness (S): 4.3 mm Measurement Type: Metric Coating: TiAlN+TiN Body Material: Carbide Grade: TT9080 Unit: M
