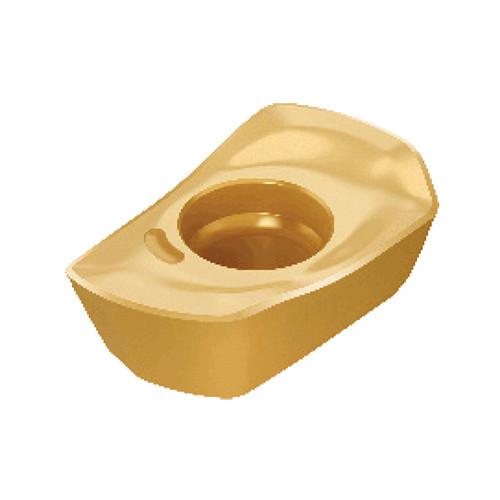

Taegutec AVKT 1004R-HF TT9080

Product Code: 6218007

$30.75$27.95 Ex. GST

Product Code: 6218007 SKU 6218007 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

High productivity single-sided, two-corner inserts with V-shape bottom contact for high feed milling

Weight	0.0033 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Cutting Edge Material: Carbide Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Minimum Feed per Tooth (fz(min)): 0.3 mm/tooth Depth of Cut Maximum (APMX): 1 mm Number of Cutting Edges: 2 Insert Thickness (S): 4.4 mm Measurement Type: Metric Coating: TiAlN+TiN Body Material: Carbide Grade: TT9080 Unit: M Maximum Feed per Tooth (fz(max)): 0.8 mm/tooth
