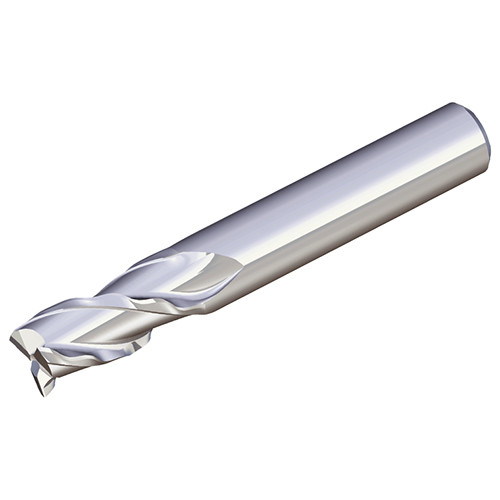

Taegutec AWE 3140 UF10

Description

Solid carbide end mills for aluminum machining with waved cutting edges, unequal space of cutting edges & variable helix angles without vibration

Weight	0.1730 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC): 14 mm Shank Type: Round Connection Diameter Machine Side (DCONMS): 14 mm End Shape: Square Depth of Cut Maximum (APMX): 24 mm Applicable Material:, Steel, Stainless Steel, Aluminum / Non-Ferrous Materials, Overall Length (OAL): 85 mm Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Cutting Edge Material: Carbide Grade: UF10 Coating: Uncoated Body Material: Carbide Flute Count (NOF): 3 Measurement Type: Metric Flute Helix Angle (FHA): 50 Degrees Unit: M
