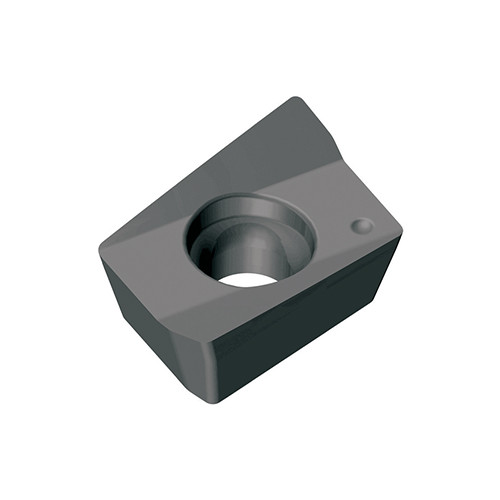

Taegutec AXCT 060200R-L TT5525

Product Code: 6306127

$23.76$21.60 Ex. GST

Product Code: 6306127 SKU 6306127 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

High positive ground inserts with two helical cutting edges in smooth cutting & low cutting force for miniature tools of Swiss automatic lathe

Weight	0.0017 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Maximum Feed per Tooth (fz(max)): 0.08 mm/tooth Application:, Facing, Inserts, Shouldering, Slotting, Cutting Edge Material: Carbide Corner Radius (RE): 0 mm Minimum Feed per Tooth (fz(min)): 0.03 mm/tooth Depth of Cut Maximum (APMX): 5 mm Measurement Type: Metric Insert Thickness (S): 2.6 mm Body Material: Carbide Coating: AlTiCrN Unit: M Grade: TT5525
