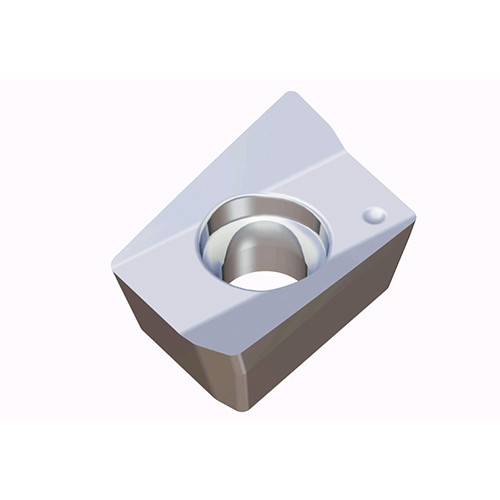

Taegutec AXCT 060204R-AL K10

Description

High positive ground inserts with 2 cutting edges & polished top of AXCT 06 for machining of aluminum & non-ferrous materials in 90° shoulders

Weight	0.0017 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10 Application:, Facing, Inserts, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Cutting Edge Length (L): 6.7 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.4 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 5 mm Number of Cutting Edges: 2 Insert Width (W1): 4.2 mm Measurement Type: Metric Insert Thickness (S): 2.6 mm Body Material: Carbide Coating: Uncoated Unit: M
