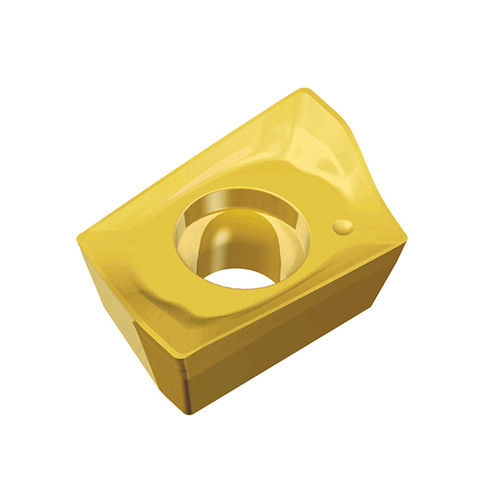

Taegutec AXMT 0602 PER-EM TT9080

Description

High positive inserts with two helical cutting edges for 90° shoulders & general machining of small parts

Weight	0.0017 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.13 mm/tooth Cutting Edge Length (L): 6.7 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.2 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Depth of Cut Maximum (APMX): 5 mm Number of Cutting Edges: 2 Insert Width (W1): 4.15 mm Measurement Type: Metric Insert Thickness (S): 2.6 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
