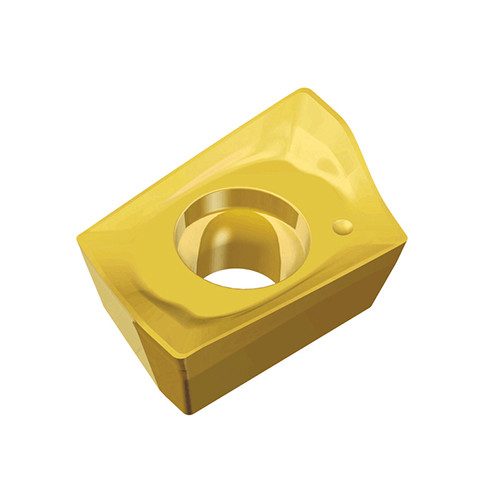

Taegutec AXMT 060204R-EM TT2510

Description

Various corner radii inserts with two helical cutting edges of AXMT 06 for 90° shoulders and general machining of small parts

Weight	0.0018 kg
barcode

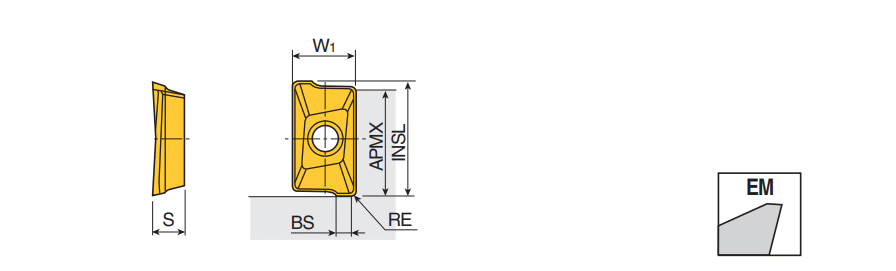

Additional Information	Applicable Material:, Steel, Hard Materials, Grade: TT2510 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.13 mm/tooth Cutting Edge Length (L): 6.7 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.4 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Depth of Cut Maximum (APMX): 5 mm Number of Cutting Edges: 2 Insert Width (W1): 4.15 mm Measurement Type: Metric Insert Thickness (S): 2.6 mm Body Material: Carbide Coating: AlTiN Unit: M
