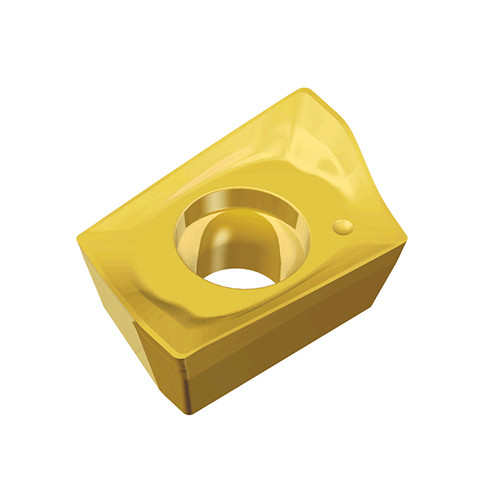

Taegutec AXMT 060216R-EM TT9030

Product Code: 5610726

$19.48$17.71 Ex. GST

Product Code: 5610726 SKU 5610726 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec AXMT 060216R-EM TT9030

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Various corner radii inserts with two helical cutting edges of AXMT 06 for 90° shoulders and general machining of small parts

Additional information

Weight	0.0016 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9030 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.13 mm/tooth Cutting Edge Length (L): 6.7 mm Cutting Edge Material: Carbide Corner Radius (RE): 1.6 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Depth of Cut Maximum (APMX): 5 mm Number of Cutting Edges: 2 Insert Width (W1): 4.15 mm Measurement Type: Metric Insert Thickness (S): 2.6 mm Body Material: Carbide Coating: TiAlN Unit: M

Brand

Taegutec
