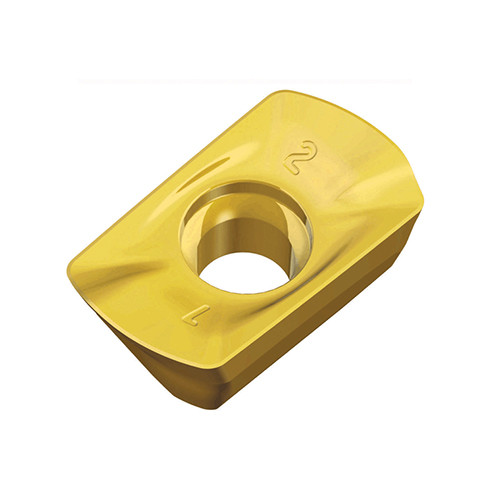

Taegutec AXMT 0602R-HF TT2510

Product Code: 6126942

$27.87$25.34 Ex. GST

Product Code: 6126942 SKU 6126942 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

High feed inserts of AXMT 06 with max. depth of cut 0.5 mm mounted on current cutters

Weight	0.0018 kg
barcode
Additional Information	Applicable Material:, Steel, Hard Materials, Maximum Feed per Tooth (fz(max)): 0.7 mm/tooth Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Cutting Edge Material: Carbide Cutting Edge Length (L): 6.7 mm Minimum Feed per Tooth (fz(min)): 0.3 mm/tooth Depth of Cut Maximum (APMX): 0.5 mm Number of Cutting Edges: 2 Insert Width (W1): 4.04 mm Measurement Type: Metric Insert Thickness (S): 2.64 mm Body Material: Carbide Coating: AlTiN Unit: M Grade: TT2510
