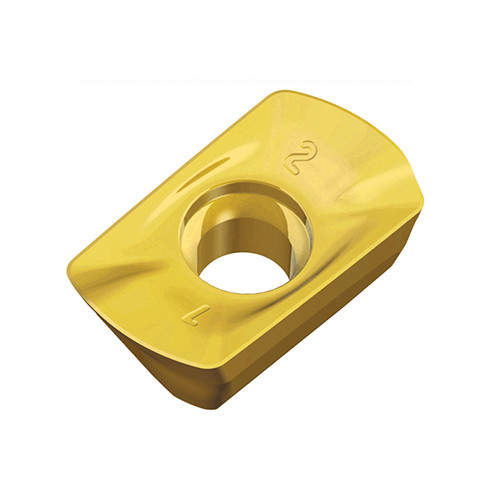

Taegutec AXMT 0602R-HF TT9080

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Maximum Feed per Tooth (fz(max)): 0.7 mm/tooth
Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Cutting Edge Material: Carbide
Cutting Edge Length (L): 6.7 mm
Minimum Feed per Tooth (fz(min)): 0.3 mm/tooth
Depth of Cut Maximum (APMX): 0.5 mm
Number of Cutting Edges: 2
Insert Width (W1): 4.04 mm
Measurement Type: Metric
Insert Thickness (S): 2.64 mm
Body Material: Carbide
Coating: TiAlN+TiN
Unit: M
Grade: TT9080
