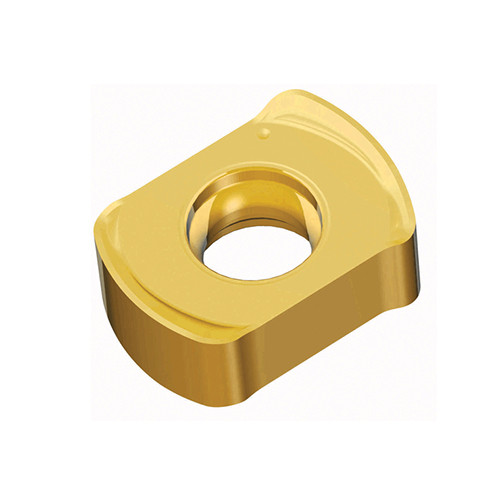

Taegutec BLMP 0603R-M TT8080

Product Code: 5615305

$24.50$22.27 Ex. GST

Product Code: 5615305 SKU 5615305 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Unique double-sided inserts of 4 cutting edges for high feed milling of general applications in max. ap 1.0 mm

Weight	0.0029 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8080 Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 1.2 mm/tooth Cutting Edge Length (L): 9 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 1 mm Minimum Feed per Tooth (fz(min)): 0.3 mm/tooth Insert Width (W1): 6.39 mm Measurement Type: Metric Insert Thickness (S): 3.73 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
