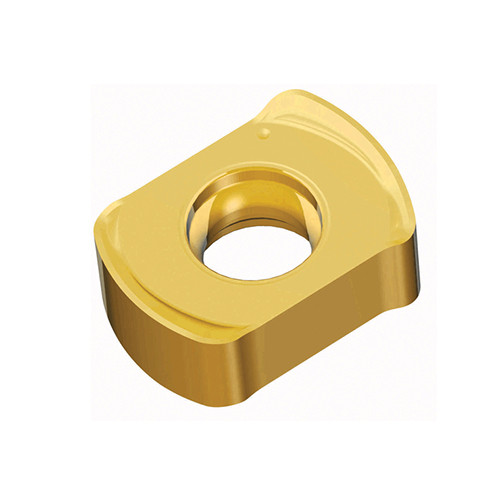

Taegutec BLMP 0904R-M TT3540

Product Code: 5616368

$44.80$40.73 Ex. GST

Product Code: 5616368 SKU 5616368 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Unique double-sided inserts of 4 cutting edges for high feed milling of general applications in max. depth of cut 1.5 mm

Weight	0.0054 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT3540 Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 1.3 mm/tooth Cutting Edge Length (L): 11.94 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 1.5 mm Minimum Feed per Tooth (fz(min)): 0.3 mm/tooth Insert Width (W1): 9.2 mm Measurement Type: Metric Insert Thickness (S): 4.79 mm Body Material: Carbide Coating: TiAlN Unit: M
