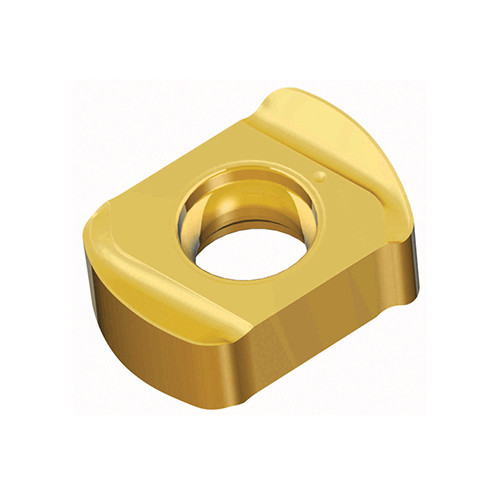

Taegutec BLMP 0904R-MM TT8020

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8020
Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 1.3 mm/tooth
Cutting Edge Length (L): 11.94 mm
Cutting Edge Material: Carbide
Depth of Cut Maximum (APMX): 1.5 mm
Minimum Feed per Tooth (fz(min)): 0.3 mm/tooth
Insert Width (W1): 9.2 mm
Measurement Type: Metric
Insert Thickness (S): 4.79 mm
Body Material: Carbide
Coating: TiCN
Unit: M
