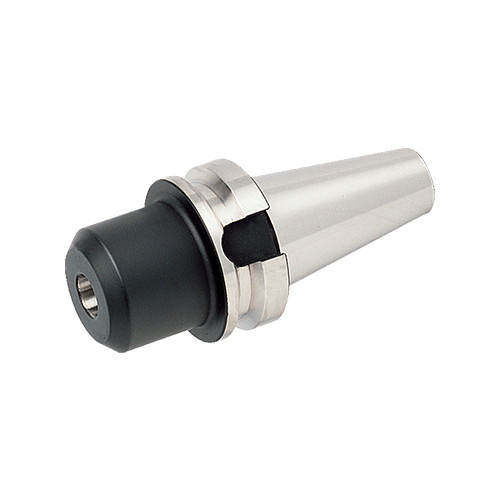

DIN6359 / DIN 1835 form B weldon end mill holders with BT MAS-403 form AD taper shanks
Additional information
Weight
0.6750 kg
barcode
Additional Information
Shank Type: Weldon
Measurement Type: Metric

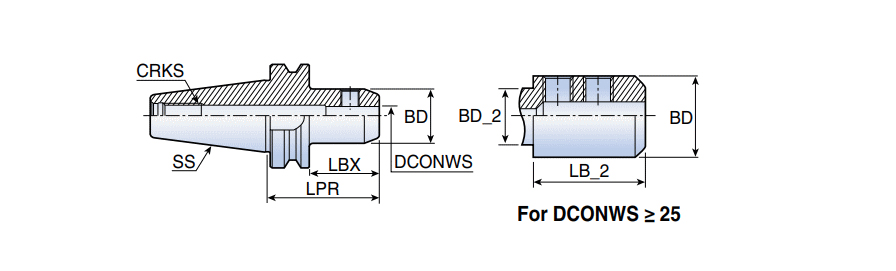

Connection Diameter Workpiece Side (DCONWS): 10 mm
Connection Retention Knob Thread Size (CRKS): M12
Body Diameter (BD): 35 mm
Shank Size (SS): 30 mm
Body Length Maximum (LBX): 60 mm
Body Material: Steel
Nose Length: 38 mm
Unit: M

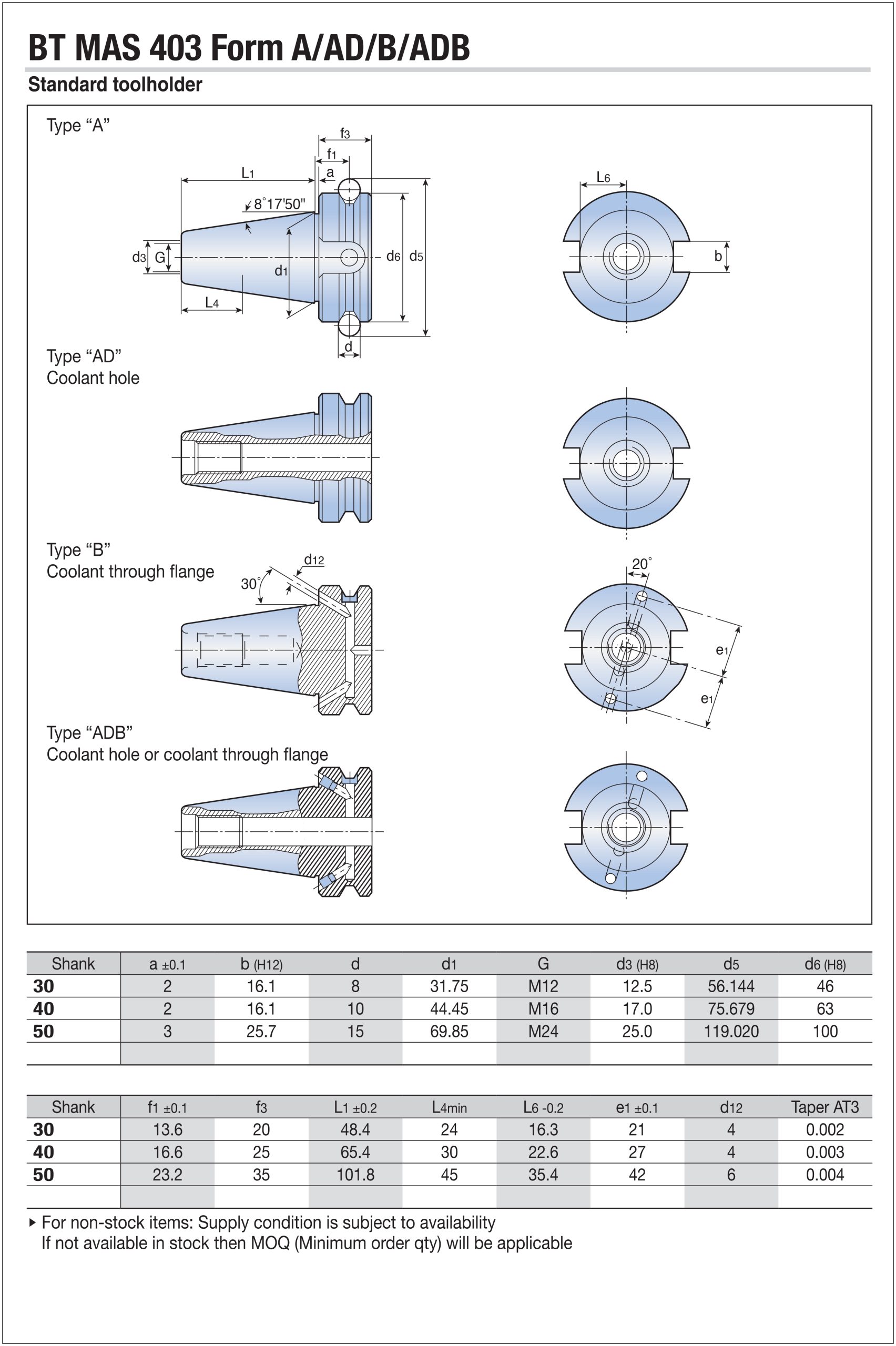

Application:, BT MAS 403
