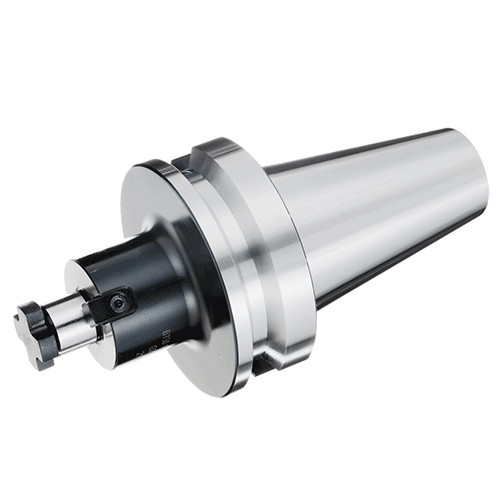

ISO 3937 Face mill arbors with coolant holes & BT MAS-403 form ADB taper shanks
Additional information
Weight
0.0000 kg
barcode
Additional Information

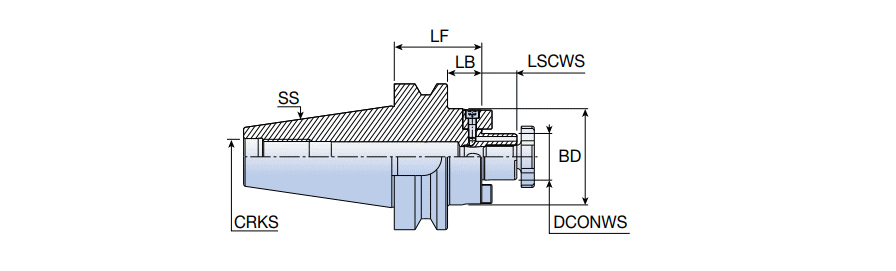

Connection Diameter Workpiece Side (DCONWS): 27 mm
Clamping Length Workpiece Side (LSCWS): 21 mm
Shank Size (SS): 40 mm
Measurement Type: Metric
Functional Length (LF): 45 mm
Body Material: Steel
Body Diameter (BD): 58 mm
Weight of Item (WT): 1.45 kg
Application:, BT MAS 403, Unit: M
