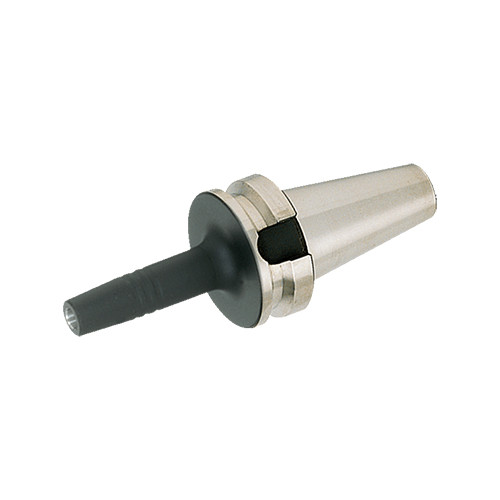

Thermal shrinking chucks with BT MAS-403 form AD taper shanks for solid carbide tools
Additional information
Weight
1.1450 kg
barcode
Additional Information
Connection Diameter Workpiece Side (DCONWS): 12 mm
Clamping Length Workpiece Side (LSCWS): 42 mm
Shank Size (SS): 40 mm
Shank Length (LS): 65.4 mm
Body Length (LB): 42.3 mm
Usable Length (LU): 77 mm
Body Diameter_2 (BD_2): 20 mm
Measurement Type: Metric
Application:, BT MAS 403, Body Material: Steel
Thread Designation Inside (THID): M10
Unit: M
