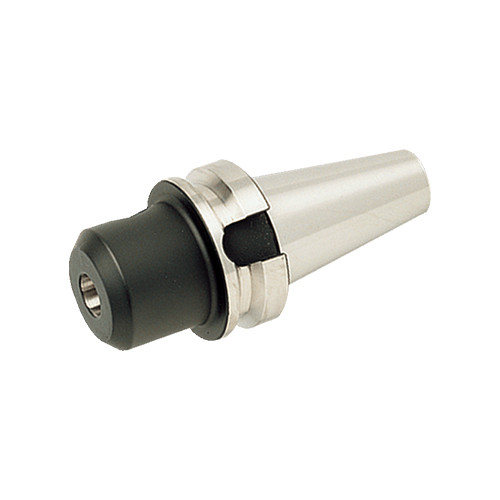

DIN 6359 / DIN 1835 form E whistle notch end mill holders with BT MAS-403 form AD taper shanks
Additional information
Weight
5.3200 kg
barcode
Additional Information
Shank Type: Weldon
Measurement Type: Metric
Connection Diameter Workpiece Side (DCONWS): 25 mm
Connection Retention Knob Thread Size (CRKS): M24
Body Diameter (BD): 65 mm
Shank Size (SS): 50 mm
Body Length Maximum (LBX): 115 mm
Thread Size: M20X1.5
Nose Length: 77 mm
Body Material: Steel
Application:, BT MAS 403, Unit: M
