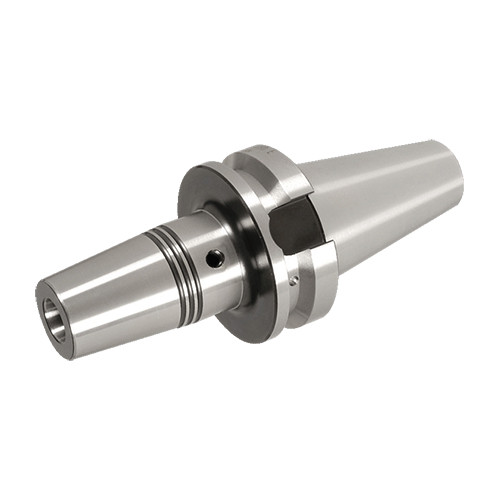

Thermal shrinking chucks with BT MAS-403 form AD taper shanks for solid carbide & steel shank tools
Additional information
Weight
4.0600 kg
barcode
Additional Information
Connection Diameter Workpiece Side (DCONWS): 18 mm
Clamping Length Workpiece Side (LSCWS): 50 mm
Shank Size (SS): 50 mm
Shank Length (LS): 101.8 mm
Body Length (LB): 57 mm
Usable Length (LU): 100 mm
Body Diameter_2 (BD_2): 33 mm
Measurement Type: Metric
Application:, BT MAS 403, Body Material: Steel
Thread Designation Inside (THID): M12
Unit: M
