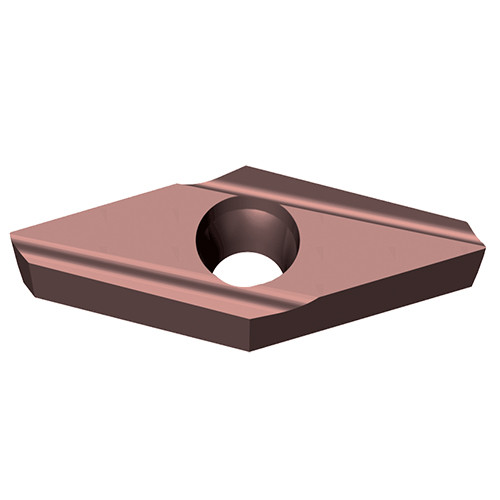

Taegutec BTVC 110301MR-F TT4430

Description

Laydown type Back turning inserts with ground chip breaker & sharp cutting edge for general purpose of small parts on swiss type automatic lathes

Weight	0.0011 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Min D.O.C.: 0.05 mm Application:, Ext 53° App 35°Diamond, Inserts, Tools for Swiss Machines, Depth of Cut Maximum (APMX): 3.5 mm Corner Radius (RE): 0.1 mm Min. Turning Feed (ft(min)): 0.01 mm/rev Insert Thickness (S): 3.18 mm Max. Turning Feed (ft(max)): 0.15 mm/rev Inscribed Circle Diameter (IC): 6.35 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: Multi AlTiCrN Unit: M Grade: TT4430
