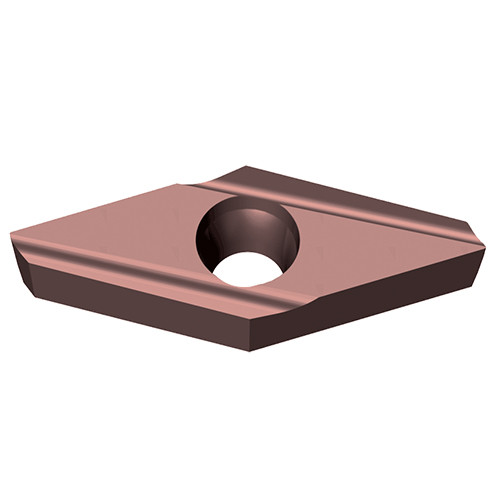

Taegutec BTVC 110302MR-F TT4430

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Min D.O.C.: 0.1 mm
Application:, Ext 53° App 35°Diamond, Inserts, Tools for Swiss Machines, Depth of Cut Maximum (APMX): 3.5 mm
Corner Radius (RE): 0.2 mm
Min. Turning Feed (ft(min)): 0.01 mm/rev
Insert Thickness (S): 3.18 mm
Max. Turning Feed (ft(max)): 0.15 mm/rev
Inscribed Circle Diameter (IC): 6.35 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: Multi AlTiCrN
Unit: M
Grade: TT4430
