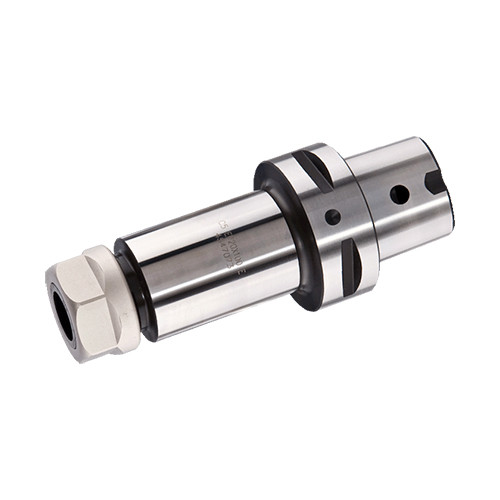

DIN 6499 ER collet chucks with C-ADAPTER (ISO 26623-1)
Additional information
Weight
0.4760 kg
barcode
Additional Information
Connection Size (CSI): ER32
Nose Length: 34 mm
Body Diameter (BD): 50 mm
Connection Diameter Minimum Workpiece Side (DCONNWS): 2 mm
Body Length Maximum (LBX): 54 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 20 mm
Connection Diameter Machine Side (DCONMS): 40 mm
Measurement Type: Metric
Connection Thread Nominal Size Machine Side (THSZMS): –
Body Material: Steel
Shank Length (LS): 54 mm
Unit: M
Application:, ISO 26623 1 C ADAPTER
