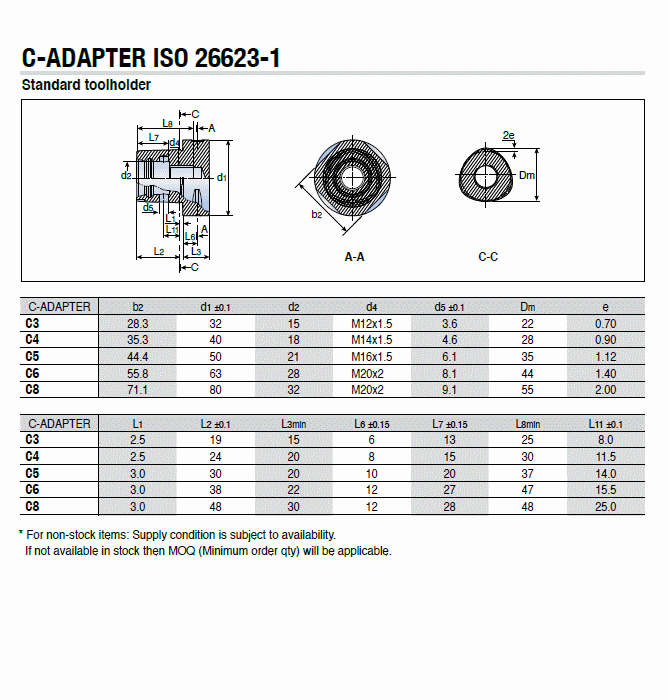

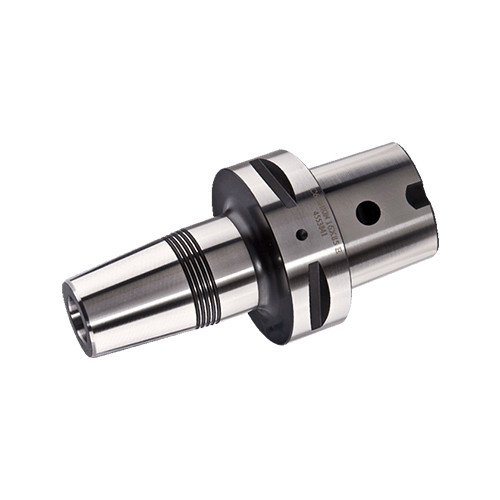

Thermal shrinking chucks with C-ADAPTER (ISO 26623-1) shanks for solid carbide and steel shank tools
Additional information
Weight
0.2500 kg
barcode

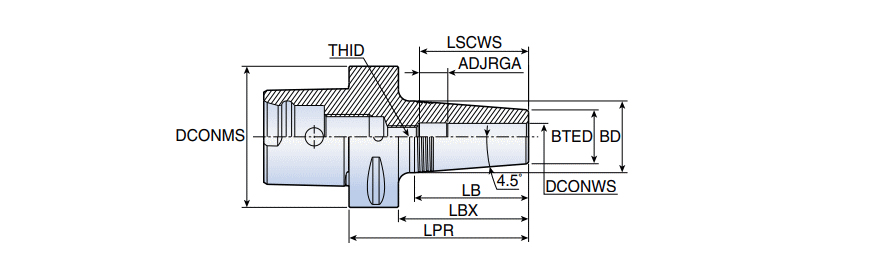

Additional Information
Connection Diameter Workpiece Side (DCONWS): 18 mm
Clamping Length Workpiece Side (LSCWS): 50 mm
Shank Size (SS): 40 mm
Usable Length (LU): 80 mm
Body Length (LB): 57.2 mm
Measurement Type: Metric
Body Diameter_2 (BD_2): 33 mm
Body Material: Steel
Application:, ISO 26623 1 C ADAPTER, Unit: M
Thread Designation Inside (THID): M12
