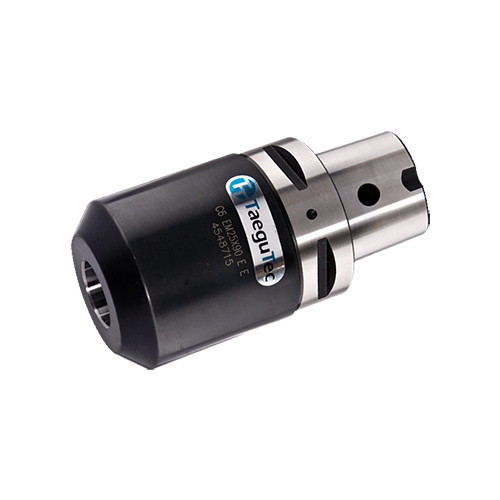

‎Whistle notch DIN 6359 / DIN 1835 form E end mill holders with C-ADAPTER (ISO 26623-1) taper shanks
Additional information
Weight
1.3200 kg
barcode
Additional Information
Shank Type: Weldon
Measurement Type: Metric
Connection Diameter Workpiece Side (DCONWS): 16 mm
Connection Retention Knob Thread Size (CRKS): M16
Body Diameter (BD): 48 mm
Shank Size (SS): 50 mm
Body Length Maximum (LBX): 80 mm
Thread Size: M12
Nose Length: 60 mm
Body Material: Steel
Application:, ISO 26623 1 C ADAPTER, Unit: M
