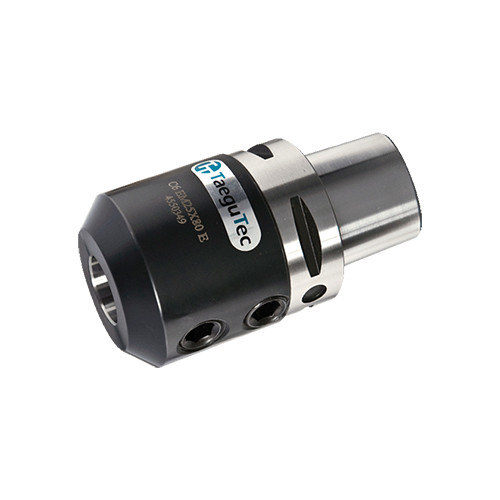

Weldon DIN 6359/DIN 6359 form B end mill holders with C-ADAPTER (ISO 26623-1) taper shanks
Additional information
Weight
1.5000 kg
barcode
Additional Information
Shank Type: Weldon
Measurement Type: Metric
Connection Diameter Workpiece Side (DCONWS): 6 mm
Connection Retention Knob Thread Size (CRKS): M16
Body Diameter (BD): 25 mm
Shank Size (SS): 50 mm
Body Length Maximum (LBX): 50 mm
Body Material: Steel
Nose Length: 30 mm
Unit: M
Application:, ISO 26623 1 C ADAPTER
