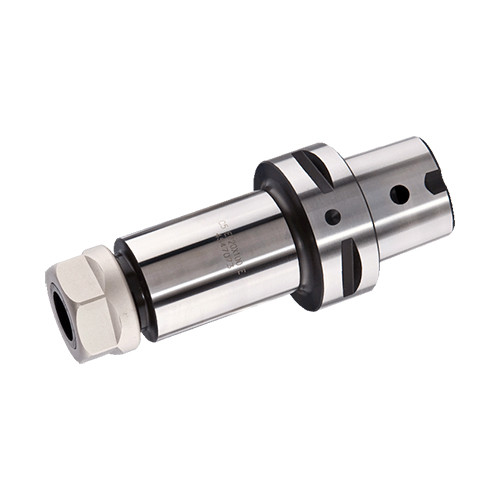

DIN 6499 ER collet chucks with C-ADAPTER (ISO 26623-1)
Additional information
Weight
1.2830 kg
barcode
Additional Information
Connection Size (CSI): ER20
Nose Length: 35 mm
Body Diameter (BD): 34 mm
Connection Diameter Minimum Workpiece Side (DCONNWS): 1 mm
Body Length Maximum (LBX): 55 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 13 mm
Connection Diameter Machine Side (DCONMS): 50 mm
Measurement Type: Metric
Connection Thread Nominal Size Machine Side (THSZMS): –
Body Material: Steel
Shank Length (LS): 55 mm
Unit: M
Application:, ISO 26623 1 C ADAPTER
