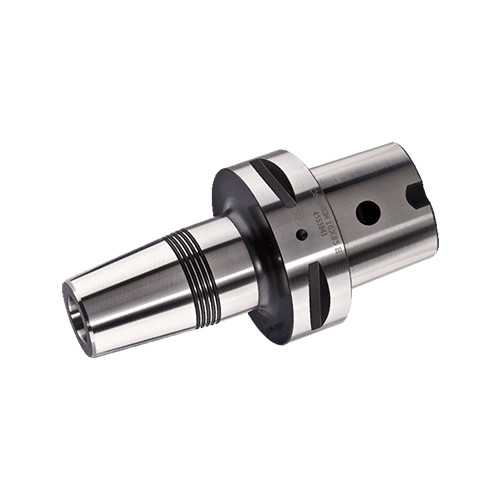

Thermal shrinking chucks with C-ADAPTER (ISO 26623-1) shanks for solid carbide and steel shank tools
Additional information
Weight
0.0010 kg
barcode
Additional Information

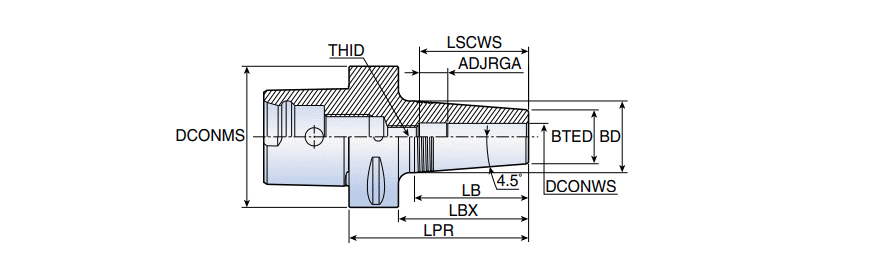

Connection Diameter Workpiece Side (DCONWS): 10 mm
Clamping Length Workpiece Side (LSCWS): 42 mm
Shank Size (SS): 50 mm
Usable Length (LU): 75 mm
Body Length (LB): 50.8 mm
Measurement Type: Metric
Body Diameter_2 (BD_2): 24 mm
Body Material: Steel

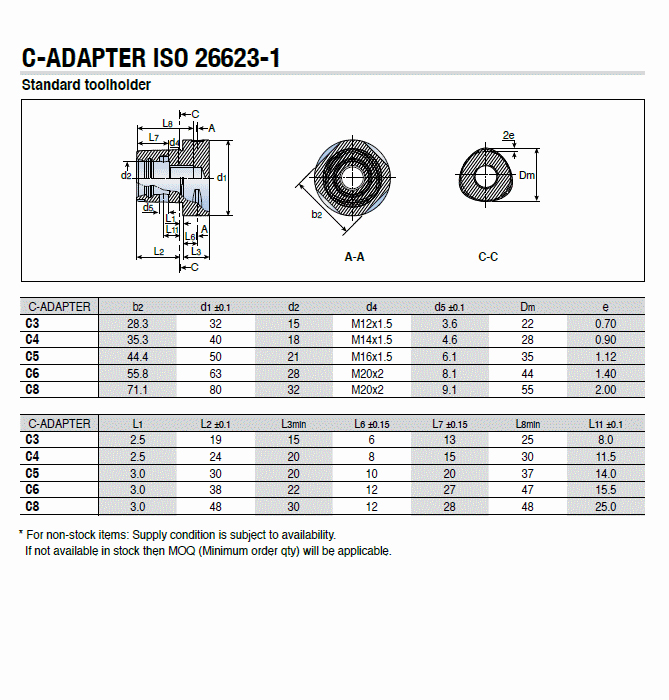

Application:, ISO 26623 1 C ADAPTER, Unit: M
Thread Designation Inside (THID): M8
