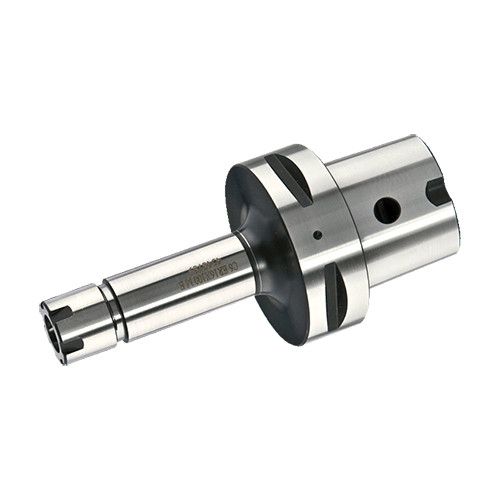

DIN 6499 ER mini collet chucks with C-ADAPTER (ISO 26623-1)
Additional information
Weight
4.1900 kg
barcode
Additional Information
Connection Size (CSI): ER16
Nose Length: 108 mm
Body Diameter (BD): 22 mm
Connection Diameter Minimum Workpiece Side (DCONNWS): 0.5 mm
Body Length Maximum (LBX): 130 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 10 mm
Connection Diameter Machine Side (DCONMS): 63 mm
Measurement Type: Metric
Connection Thread Nominal Size Machine Side (THSZMS): M10
Body Material: Steel
Application:, ISO 26623 1 C ADAPTER, Unit: M
