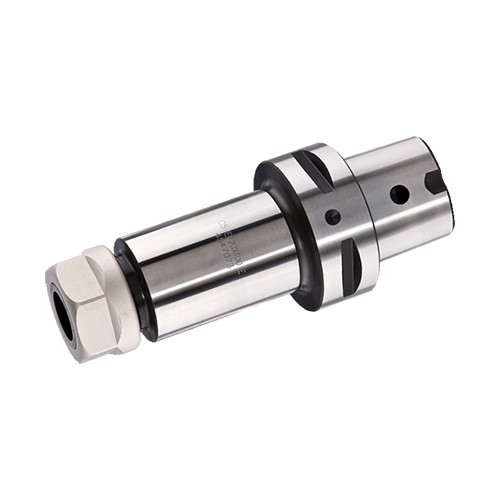

DIN 6499 ER collet chucks with C-ADAPTER (ISO 26623-1)
Additional information
Weight
1.5000 kg
barcode
Additional Information
Connection Size (CSI): ER20
Nose Length: 138 mm
Body Diameter (BD): 34 mm
Connection Diameter Minimum Workpiece Side (DCONNWS): 1 mm
Body Length Maximum (LBX): 160 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 13 mm
Connection Diameter Machine Side (DCONMS): 63 mm
Measurement Type: Metric
Connection Thread Nominal Size Machine Side (THSZMS): M12
Body Material: Steel
Shank Length (LS): 160 mm
Unit: M
Application:, ISO 26623 1 C ADAPTER
