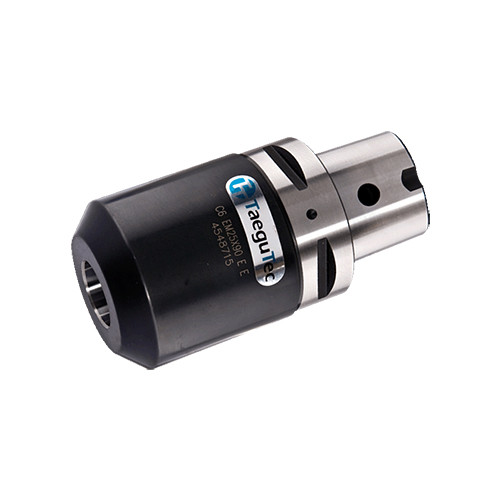

‎Whistle notch DIN 6359 / DIN 1835 form E end mill holders with C-ADAPTER (ISO 26623-1) taper shanks
Additional information
Weight
2.0480 kg
barcode
Additional Information
Shank Type: Weldon
Measurement Type: Metric
Connection Diameter Workpiece Side (DCONWS): 8 mm
Connection Retention Knob Thread Size (CRKS): M20
Body Diameter (BD): 28 mm
Shank Size (SS): 80 mm
Body Length Maximum (LBX): 65 mm
Thread Size: M6
Nose Length: 35 mm
Body Material: Steel
Application:, ISO 26623 1 C ADAPTER, Unit: M
