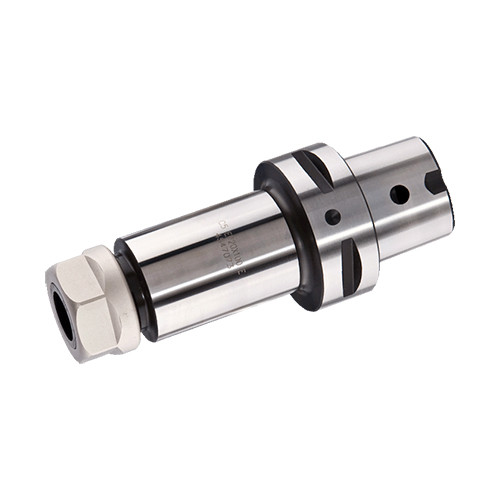

DIN 6499 ER collet chucks with C-ADAPTER (ISO 26623-1)
Additional information
Weight
0.0010 kg
barcode
Additional Information

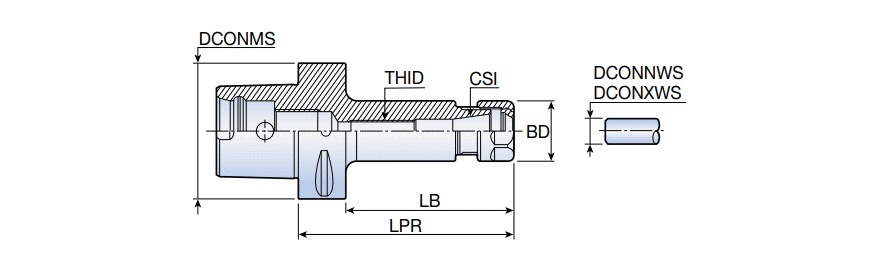

Connection Size (CSI): ER32
Nose Length: 130 mm
Body Diameter (BD): 50 mm
Connection Diameter Minimum Workpiece Side (DCONNWS): 2 mm
Body Length Maximum (LBX): 160 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 20 mm
Connection Diameter Machine Side (DCONMS): 80 mm
Measurement Type: Metric
Connection Thread Nominal Size Machine Side (THSZMS): M22X1.5
Body Material: Steel
Shank Length (LS): 160 mm
Unit: M

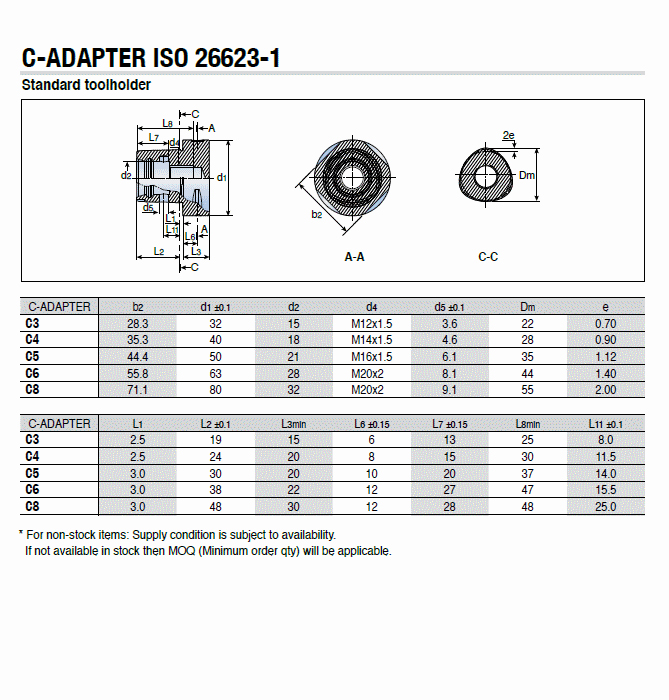

Application:, ISO 26623 1 C ADAPTER
