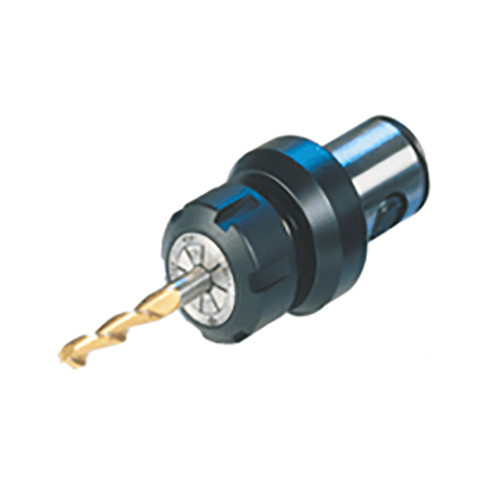

DIN 6499 ER collet chucks with MB modular boring system connection
Additional information
Weight
0.7900 kg
barcode
Additional Information

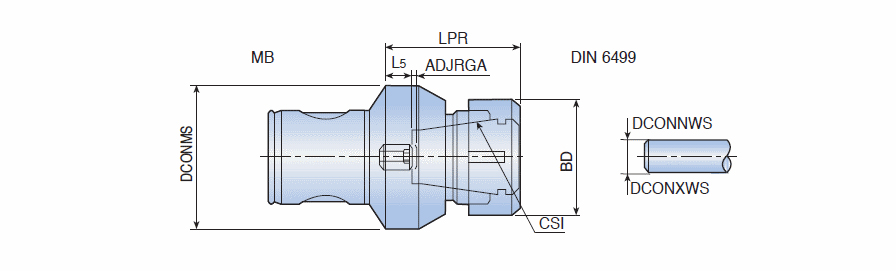

Connection Size (CSI): ER32
Connection Diameter Minimum Workpiece Side (DCONNWS): 2 mm
Body Diameter (BD): 50 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 20 mm
Body Length Maximum (LBX): 59 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): MB50 mm
Body Material: Steel
Application:, MPT BORE System, Unit: M
