Taegutec CCGT 09T301M SM-F TT4410

Description

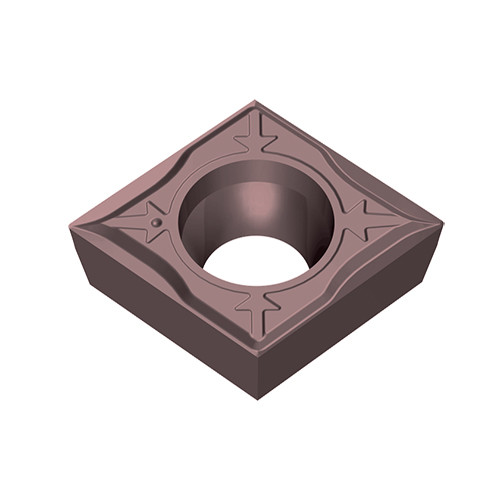

Positive ground 80° rhombic inserts with sharp cutting edge for general purpose of small parts on swiss type automatic lathes

Weight	0.0027 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT4410 Application:, Ext 90° App 80° Diamond, Ext 95° App 80°Diamond, Ext 95° App Sleeve 80° Diamond, Inserts, Int 95° App 80° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.2 mm Corner Radius (RE): 0.1 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 9.7 mm Min. Turning Feed (ft(min)): 0.02 mm/rev Insert Thickness (S): 3.97 mm Max. Turning Feed (ft(max)): 0.12 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: Multi AlTiCrN Unit: M
