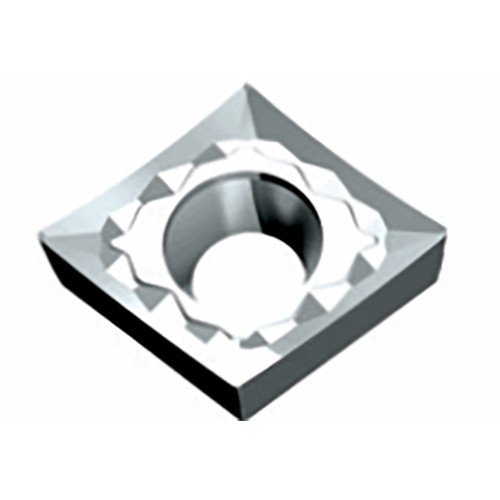

Taegutec CCGT 120408 FL K10

Description

Positive periphery ground & top polished 80° Rhombic inserts with very high positive rake & sharp cutting edges for aluminum machining

Weight	0.0091 kg
barcode

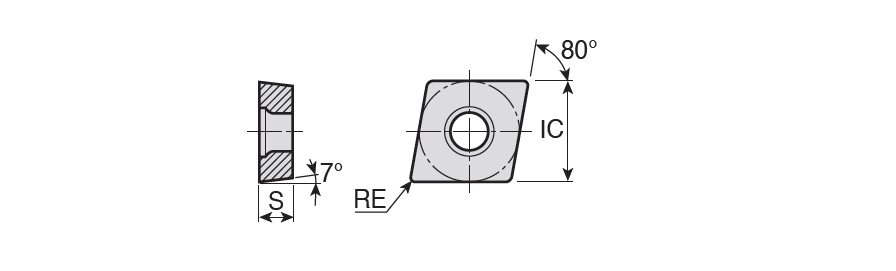

Additional Information	Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10 Application:, Ext 90° App 80° Diamond, Ext 95° App 80°Diamond, Ext 95° App Sleeve 80° Diamond, Inserts, Int 95° App 80° Diamond, Tools for Swiss Machines, Min D.O.C.: 1 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 3.5 mm Cutting Edge Length (L): 12.9 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: Uncoated Unit: M
