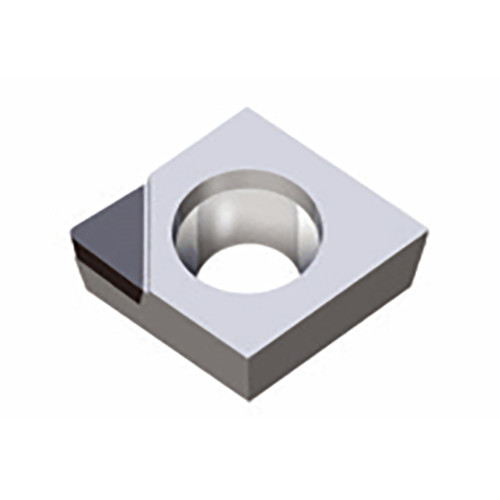

Taegutec CCGW 060202 LN-7 KP300

Applicable Material:, Aluminum / Non-Ferrous Materials, Grade: KP300
Application:, Ext 90° App 80° Diamond, Ext 95° App 80°Diamond, Ext 95° App Sleeve 80° Diamond, Inserts, Int 95° App 80° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.08 mm
Corner Radius (RE): 0.2 mm
Depth of Cut Maximum (APMX): 0.3 mm
Cutting Edge Length (L): 6.3 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 2.38 mm
Max. Turning Feed (ft(max)): 0.3 mm/rev
Inscribed Circle Diameter (IC): 6.35 mm
Measurement Type: Metric
Cutting Edge Material: PCD
Body Material: Carbide
Coating: PCD
Unit: M
