Taegutec CCGW 09T304 LN-7 TD810

Description

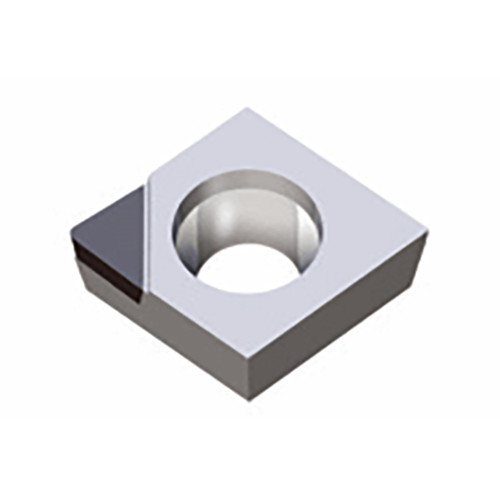

Positive 80° Rhombic inserts with single PCD tip of positive rake angle for finishing of non-ferrous metal & aluminum

Weight	0.0067 kg
barcode
Additional Information	Applicable Material:, Aluminum / Non-Ferrous Materials, Grade: TD810 Application:, Ext 90° App 80° Diamond, Ext 95° App 80°Diamond, Ext 95° App Sleeve 80° Diamond, Inserts, Int 95° App 80° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.1 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 0.3 mm Cutting Edge Length (L): 9.7 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 3.97 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: PCD Body Material: Carbide Coating: PCD Unit: M
